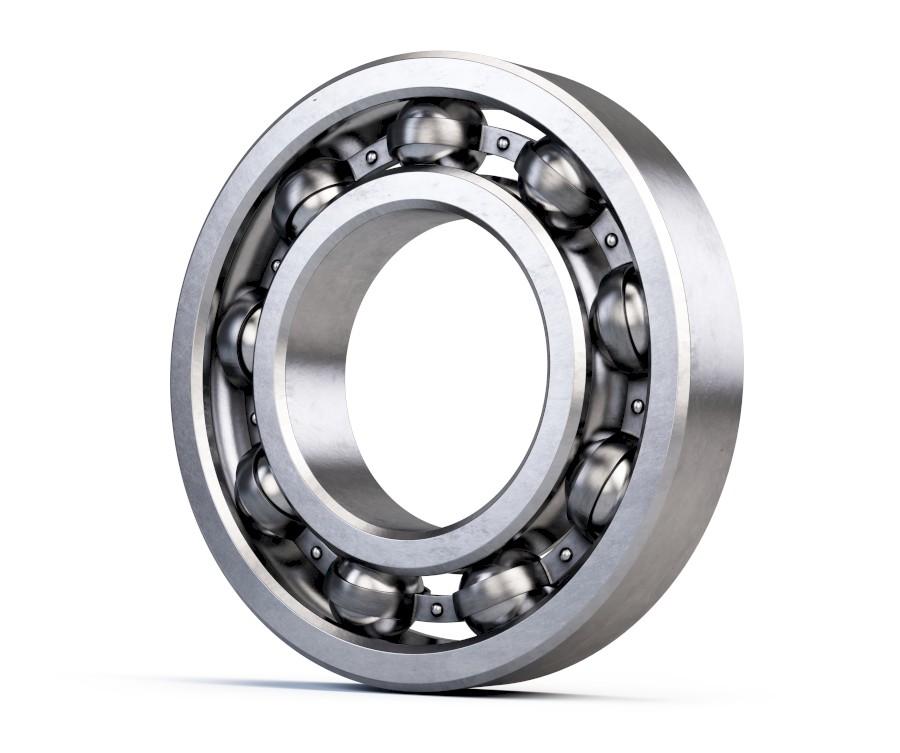

Deep groove ball bearing 6202 AZ
| Your price | 14,73 Kč |
| Your price with VAT | 17,82 Kč |
In stock > 100
Bystřice nad Pernštejnem
In stock > 100
Ústí nad Labem
Not in stock
Brno
Not in stock
| VAT: | 21% |
| Unit: | pc |
| Code: | 00.91.785 |
| EAN: | 91785 |
| Brand: | AZ |
Description
Deep groove ball bearings are available as covered (with seals or covers) or uncovered. Deep groove ball bearings are also available with filler grooves, which have a filler groove in both the inner and outer rings. Bearings with filler grooves have a higher radial load capacity than bearings without filler grooves, but their axial load capacity is limited.
Technical specification
Dimensions
| Inner diameter - d |
Inner diameter - d
15 mm |
| Outer diameter - D |
Outer diameter - D
35 mm |
| Width - B |
Width - B
11 mm |
Design
| Radial clearance |
Radial clearance
CN - normal |
| Sealing |
Sealing
without |
| Bearing material |
Bearing material
steel |
| Cage material |
Cage material
steel |
| Inner ring design |
Inner ring design
cylindrical bore |
| Tolerance group |
Tolerance group
PN - normal |
| Measurement system |
Measurement system
metric |
General
| Mass |
Mass
0,044 kg |
| Manufacturer's website |
Manufacturer's website Link |
